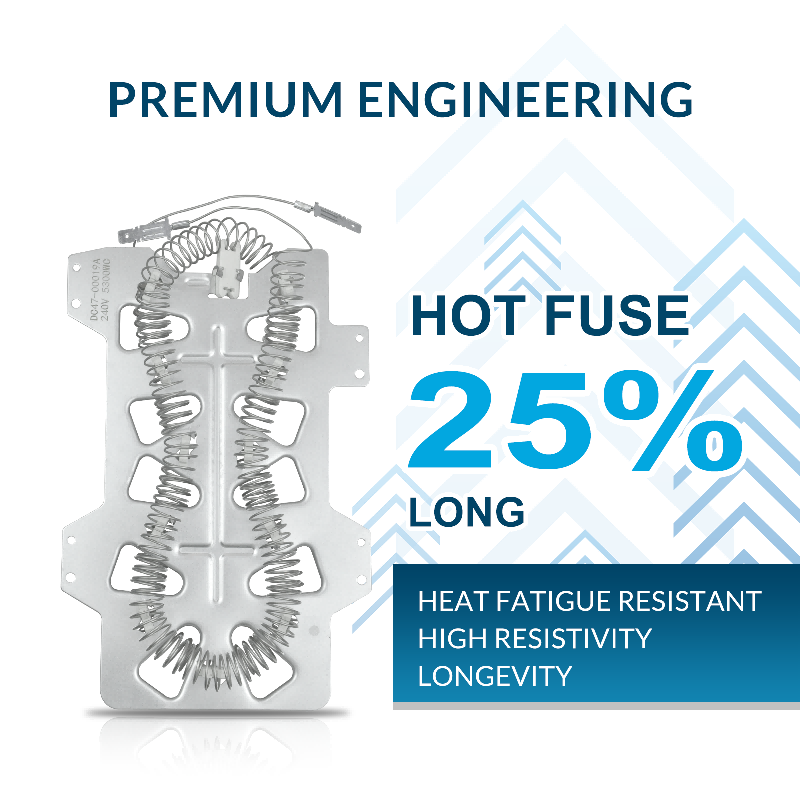

The DC47-00019A dryer heating element is a 240V 5300W electric heating assembly primarily designed for Samsung dryers. When your Samsung dryer tumbles but produces no heat — or clothes take multiple cycles to dry — the heating element is the most common culprit.
Multiple listings confirm the DC47-00019A is rated at 240 Volts and 5300 Watts, with the heating coil made from nickel‑chromium alloy wire for efficient and consistent drying. Premium aftermarket variants use 95% nickel‑chromium material, delivering superior high‑temperature resistance and longer service life.
Voltage: 240V AC
Wattage: 5300W
Coil material: Nickel‑chromium (≥35% / premium: 85%)
Dimensions: 6.5″ × 10.2″
Terminal type: 1/4″ high‑temp non‑insulated
Interchangeable part numbers: 35001247, 35001119, AP4045884, 1185561, AH2038533, EA2038533, PS2038533, ERDC47-00019A, 2068550, PS4205218.
The DC47-00019A fits most Samsung electric dryers and also works with select Kenmore, Maytag, Amana, Whirlpool, Inglis, and LG models.
Compatible Samsung models include: DV42H5000EW/A3, DV42H5200EW/A3, DV42H5200EP/A3, DV45H7000EW/A2, DV48H7400EW/A2, DV40J3000EW/A2, DVE50M7450W/A3, DVE50R5200W/A3, DVE50R5400V/A3, DV203AES, DV203AEW, DV206AES, DV206LEW
Quick compatibility check: Find your dryer‘s model number. Search online: “[your model number] + DC47-00019A” — if results show this part, it fits.
Important: The DC47-00019A is for electric dryers only. Gas dryers use a different heating mechanism and are not compatible.
No heat: Drum spins normally but air stays cold
Takes too long to dry: Requires 2+ cycles to dry a load
Overheating: Burning smell, clothes feel scorched
Dryer won‘t start: Thermal fuse blown (often DC96-00887A)
Common causes include a broken heating coil, cracked ceramic insulation, or the element shorting out. If the dryer runs but produces no heat, a failed DC47-00019A is the most likely cause. Be aware that a faulty thermal fuse (DC96-00887A) can also produce similar symptoms — if the element tests fine, check the fuse next.
Safety: Unplug dryer immediately if you smell burning plastic or rubber. A shorted element can cause internal fires.
Replacing the DC47-00019A is a moderate DIY repair that takes about 30–60 minutes. Always disconnect power before beginning.
Tools needed: Phillips screwdriver, flathead screwdriver, needle‑nose pliers, putty knife, multimeter, camera (for wiring documentation).
Installation steps (based on repair guides from multiple sources):
1. Unplug dryer and remove screws securing top panel at rear
2. Slide top panel back and lift off
3. Release locking tabs, remove control panel, disconnect wire harness
4. Open door, remove front panel mounting screws, disconnect door switch wire
5. Disconnect moisture sensor wire harness
6. Remove screw securing heater housing, detach housing from bracket
7. Pull heating element housing out of cabinet
8. Disconnect wires from heating element
9. Remove screws securing high‑limit thermostat and thermal limit from housing
10. Separate housing halves, remove old DC47-00019A element
11. Install new element, reassemble in reverse order
From our factory floor: Before disconnecting any wires, take a clear photo of the wiring configuration — this single step prevents most re‑assembly errors. Keep a multimeter handy to verify the old element has no continuity before disposal.
Most of the information for this heating element replacement is applicable to Samsung dryers. Before disconnecting any wires, take a picture so that you know how to reconnect everything at the end. First loads after replacement may produce a slight neutral odor as new components acclimate to heat — this is normal.
Q: Does the DC47-00019A fit my Kenmore dryer?
A: Yes — it works with many Kenmore electric dryers, especially those based on Samsung platforms. Verify with your full model number.
Q: Can I install this myself?
A: Yes. Installation takes about 30–60 minutes with basic tools. YouTube videos and the step‑by‑step guide above make it accessible for DIY beginners.
Q: Why does my dryer still have no heat after replacing the element?
A: Check the thermal fuse (DC96-00887A) and thermostat (DC47-00018A). If either has failed, the dryer won‘t heat even with a new element. The service recommendation is to replace all three components together.
Q: How long does the DC47-00019A last?
A: With proper lint maintenance, 3–5 years. One user noted their OEM original lasted 4.5 years before needing replacement. Factory data indicates 95% nickel‑chromium elements outlast lower‑grade alternatives by 12–18 months.
Q: Is the aftermarket DC47-00019A as good as OEM?
A: Quality varies by manufacturer. Premium aftermarket options use 95% nickel‑chromium content and 25% longer heating wire, often exceeding OEM specifications. Look for a 1–2 year warranty.
